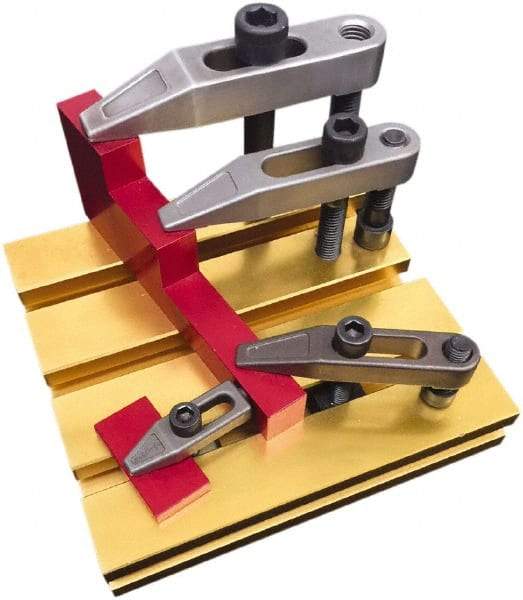

Mitee-Bite - M20 Stud, Stainless Steel, Plain Strap Clamp - 22mm Travel, 3.63" OAL x 0.89" Wide x 0.43" High, Tapered Nose
Item #: 70771241
Brand: Mitee-Bite
Model #: 36100
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Nose Type | Tapered |
| Heel Type | Plain |
| Serrated | No |
| Overall Length (Decimal Inch) | 3.6300 |
| Overall Length (mm) | 92.00 |
| Overall Length (Inch) | 3.6300 |
| Height (Inch) | 0.4300 |
| Height (mm) | 11.00 |
| Height (Decimal Inch) | 0.4300 |
| Width (mm) | 22.60 |
| Width (Inch) | 0.8900 |
| Width (Decimal Inch) | 0.8900 |
| Travel (mm) | 22.00 |
| Material | Stainless Steel |
| Stud Size (mm) | M20 |
| Tapped | Yes |
| Material Grade | 17-4PH |
| Slot Length (Decimal Inch) | 0.8600 |
| Slot Width (Decimal Inch) | 0.4000 |
