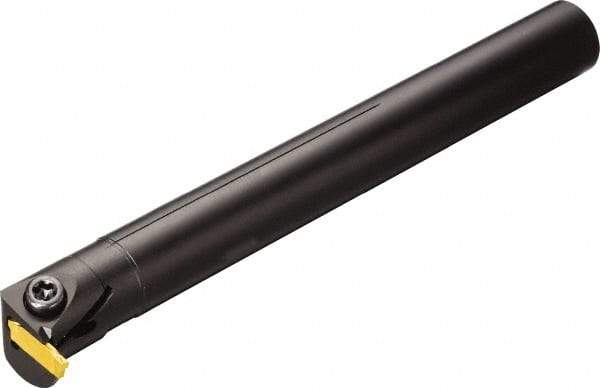

Sandvik Coromant - 32mm Min Bore Diam, 200mm OAL, 1" Shank Diam, AG123..B Indexable Boring Bar - N123G2-0300-GM Insert, Screw Clamping Holding Method
Item #: 70767900
Brand: Sandvik Coromant
Model #: 5739644
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | AG123..B |
| Series | CoroCut |
| Minimum Bore Diameter Using Triangle Insert Cartridge (Decimal Inch) | 1.2598 |
| Minimum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch) | 1.2598 |
| Minimum Bore Diameter (mm) | 32.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.2598 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 200.00 |
| Overall Length (Decimal Inch) | 7.8740 |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Compatibility | N123G2-0300-GM |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Boring |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw Clamping |
| Rake | Neutral |
| Neck Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 0 |
| Neck Diameter (Inch) | 1 |
| Back of Bar to Cutting Edge (mm) | 200.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 7.8740 |
| Center to Cutting Edge (mm) | 19.75 |
| Center to Cutting Edge (Decimal Inch) | 0.7776 |
| Insert Thickness (Decimal Inch) | 0.1693 |
| Rake Angle | 0 |
| Complete Insert Compatibility | N123G2-0300-GM |
| Toolholder Material | Steel |
| Number of Inserts Included in Order | 0 |
