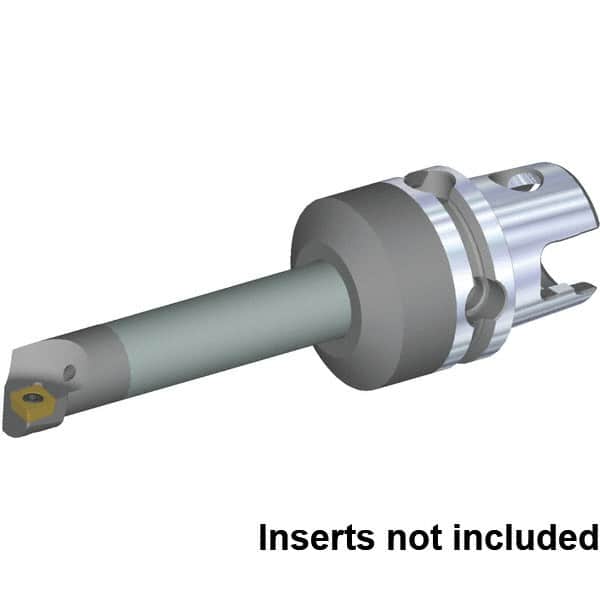

Kennametal - Left Hand Cut, 13mm Min Bore Diam, Size KM40TS Steel Modular Boring Cutting Unit Head - 50mm Max Bore Depth, Through Coolant, Compatible with CP.. 060204, CP.. 2151
Item #: 70689070
Brand: Kennametal
Model #: 3950843
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | KM40TS |
| Series Name | KM40 |
| Minimum Bore Diameter (mm) | 13.00 |
| Cutting Direction | Left Hand |
| Maximum Bore Depth (mm) | 50.00 |
| Insert Style | CP.. 060204; CP.. 2151 |
| Head Length/Projection (mm) | 80.00 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Yes |
| Center to Cutting Edge (mm) | 7.00 |
| Maximum Bore Diameter (mm) | 50.00 |
| Neck Diameter (mm) | 10.00 |
