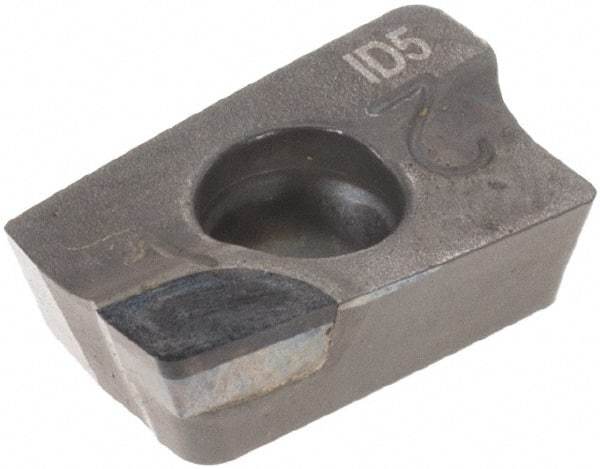

Iscar - APKW100304 Grade ID5 PCD Milling Insert - Uncoated, 0.1378" Thick, 0.4mm Corner Radius
Item #: 70684931
Brand: Iscar
Model #: 5605186
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | APKW |
| Insert Size | 100304 |
| Material | PCD |
| Manufacturer's Grade | ID5 |
| Coating | Uncoated |
| Width (Decimal Inch) | 0.2660 |
| Length (Decimal Inch) | 0.4410 |
| Thickness (Decimal Inch) | 0.1378 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.40 |
| Relief Angle | 11.000 |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| ISO Number | APKW 100304 PDR |
