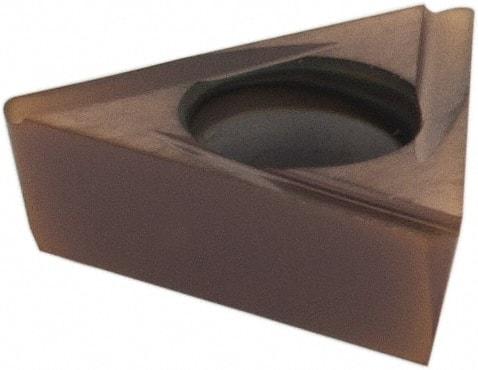

Sumitomo - TPGT631 FX Grade AC510U Carbide Turning Insert - TiAlN/AlCrN Finish, 60° Triangle, 3/16" Inscr Circle, 3/32" Thick, 1/64" Corner Radius
Item #: 70680921
Brand: Sumitomo
Model #: 10HVW34
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPGT |
| Insert Size | 631 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.1875 |
| Inscribed Circle (Inch) | 3/16 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0940 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | AC510U |
| Coating | TiAlN/AlCrN |
| Chip Breaker | FX |
| Hole Diameter (Decimal Inch) | 0.0900 |
| Rake | Positive |
| Rake Angle | 15 |
| Relief Angle | 11 |
| Proprietary Coating Designation | Super ZX |
| Coating Process | PVD |
| Included Angle | 60 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Shape | Triangle |
