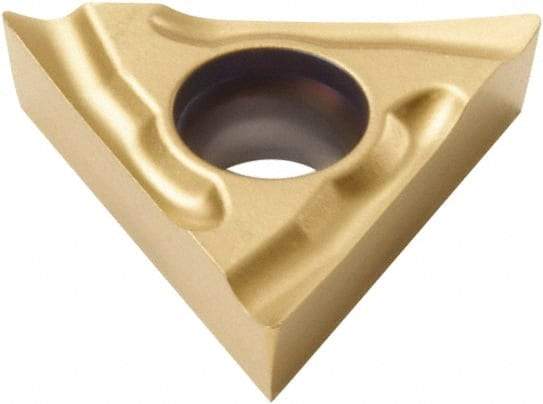

Seco - TCGT21.51 UX Grade CP500 Carbide Turning Insert - TiAlN/TiN Finish, 60° Triangle, 1/4" Inscr Circle, 3/32" Thick, 1/64" Corner Radius
Item #: 70665344
Brand: Seco
Model #: 07554
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TCGT |
| Insert Size | 21.51 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | CP500 |
| Coating | TiAlN/TiN |
| Material Grade | Micrograin |
| Chip Breaker | UX |
| Hole Diameter (Decimal Inch) | 0.1140 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Included Angle | 60 |
| Insert Hand | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0160 |
| Insert Holding Method | Screw |
| Shape | Triangle |
