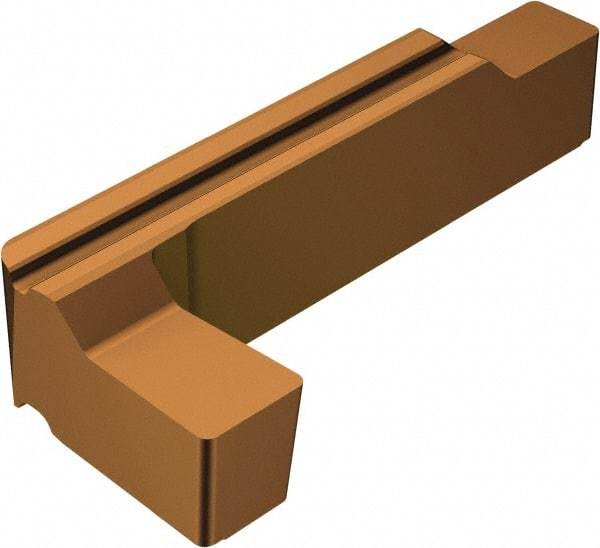

Sandvik Coromant - L1RG123 GS Grade GS1115, 2mm Cutting Width Carbide Grooving Insert - 6mm Max Depth of Cut, Right Hand, 0.2mm Corner Radius, TiAlN/AlCr2O3 Finish
Item #: 70603311
Brand: Sandvik Coromant
Model #: 5741382
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RG123 |
| Insert Size | L1 |
| Material | Carbide |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Manufacturer's Grade | GS1115 |
| Coating | TiAlN/AlCr2O3 |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Relief Angle | 7 |
| Insert Seat Size | L |
| Chipbreaker | GS |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Coating Process | PVD |
| Series | CoroCut 1-2 |
| ISO Number | RG123L102000002GS1115 |
| Manufacturers Catalog Number | 5741382 |
| Insert Thickness (Decimal Inch) | 0.1713 |
| Insert Thickness (mm) | 4.3500 |
