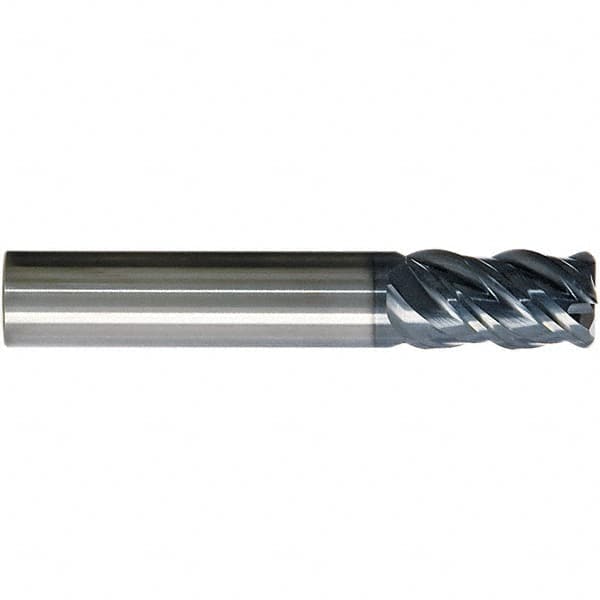

SGS - 3/8" Diam 4 Flute Solid Carbide 0.015 to 0.020" Corner Radius End Mill
Item #: 70569595
Brand: SGS
Model #: 36572
Product Specifications
| Mill Diameter (Inch) | 3/8 |
| Mill Diameter (Decimal Inch) | 0.3750 |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.0150 - 0.0200 |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Length of Cut (Inch) | 7/8 |
| Length of Cut (Decimal Inch) | 0.8750 |
| Shank Diameter (Inch) | 3/8 |
| Overall Length (Inch) | 2-1/2 |
| Variable Index | Yes |
| Variable Helix | Yes |
| Single or Double End | Single |
| Mill Diameter Tolerance (Decimal Inch) | +0.0000/-0.0016 |
| Shank Diameter Tolerance (Decimal Inch) | +0.0000/-0.00035 |
