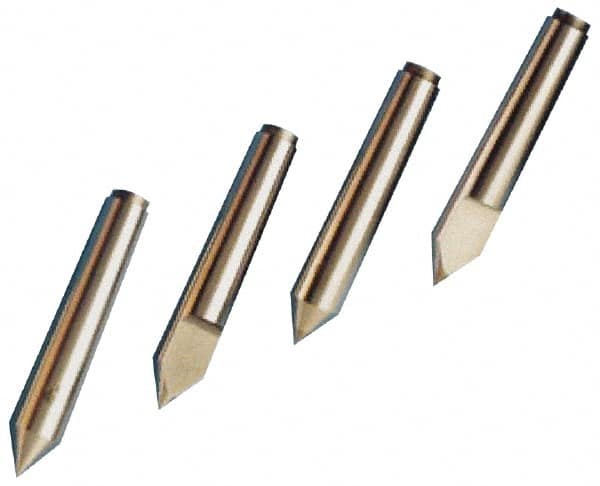

Riten - 1.289" Head Diam, Carbide-Tipped Steel Standard Point Half Dead Center - B&S 10 Brown & Sharpe Taper, 1.289" Point Diam, 8-9/16" OAL - Benchmark Tooling

Riten - 1.289" Head Diam, Carbide-Tipped Steel Standard Point Half Dead Center - B&S 10 Brown & Sharpe Taper, 1.289" Point Diam, 8-9/16" OAL


Item #: 70566161
Brand: Riten
Model #: 74004
Exact Tooling IR#: 04

Product Specifications
Center Type Half Center
Shank Type Brown & Sharpe Taper
Shank Taper Size B&S 10
Point Style Standard Point
Carbide-Tipped Yes
Head Diameter (Decimal Inch) 1.2890
Point Diameter (Decimal Inch) 1.2890
Tip Diameter (Inch) 1/2
Taper Length (Inch) 5-11/16
Taper Length (Decimal Inch) 5.6875
Overall Length (Inch) 8-9/16
Knockout Diameter (Decimal Inch) 1.0450
Point to Gauge Line (Inch) 2-7/8
Cutout Length (Inch) 2-1/4
$377.37
