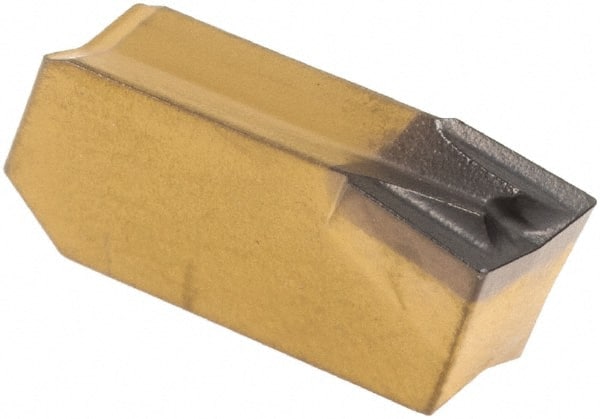

Grooving Insert: GIMF502F IC8250, Solid Carbide Al2O3 Finish, Neutral, 5 mm Cutting Width, 3 mm Max Depth, Series Cut-Grip
Item #: 70511076
Brand: Iscar
Model #: 6492484
Product Specifications
| Insert Style | GIMF |
| Insert Size Code | 502 |
| Insert Size | 502 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC8250 |
| Cutting Width (Decimal Inch) | 0.1969 |
| Cutting Width (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Maximum Depth of Cut (mm) | 3.00 |
| Insert Holding Method | Self Grip |
| Cutting Height (mm) | 5.00 |
| Insert Hand | Neutral |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.1000 to 0.1500 |
| Cutting Height (Decimal Inch) | 0.1969 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Maximum Depth Of Cut Range (mm) | 3.00 to 4.00 |
| Rake | Positive |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Turning; Parting |
| Series | Cut Grip |
| Coating Process | CVD |
| Rake Angle | 7.00 |
| Overall Length (Decimal Inch) | 0.6024 |
| Overall Length (mm) | 15.30 |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Iso Code | GIMF 502 |
| Standards | ISO 13399 |
| Manufacturers Catalog Number | GIMF 502 |
| Chip Breaker | F |
| Full Radius | No |
| Coating/Finish | Al2O3 |
| Single Or Double End | Single |
 | |
| MSC Part # | 70511076 |
| Mfr Part # | 6492484 |
