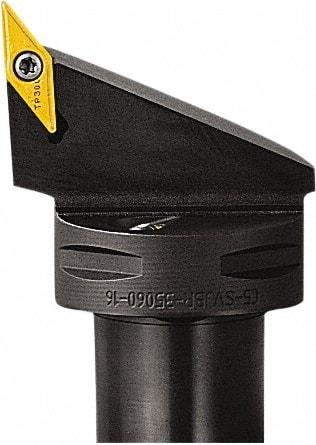

Seco - Left Hand Cut, Size C5, VBMT 21.51 Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 35.05mm Ctr to Cutting Edge, 59.94mm Head Length, Series Seco-Capto
Item #: 70484647
Brand: Seco
Model #: 94388
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C5 |
| Series Name | Seco-Capto |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 59.94 |
| Head Length/Projection (Decimal Inch) | 2.3600 |
| Insert Style | VBMT 21.51 |
| Internal or External | External |
| Center to Cutting Edge (mm) | 35.05 |
| Center to Cutting Edge (Decimal Inch) | 1.3800 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Axial Rake Angle | 0 |
| Neck Diameter (mm) | 50.04 |
| Neck Diameter (Decimal Inch) | 1.9700 |
| Complete Insert Compatibility | VBMT 21.51-F1; VBMT 21.51-MF2 |
