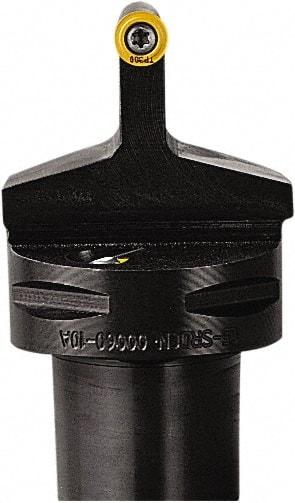

Seco - Neutral Cut, Size C6, RCMT 1204 Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 6mm Ctr to Cutting Edge, 65mm Head Length, Series Seco-Capto
Item #: 70483722
Brand: Seco
Model #: 94315
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C6 |
| Series Name | Seco-Capto |
| Cutting Direction | Neutral |
| Head Length/Projection (mm) | 65.00 |
| Head Length/Projection (Decimal Inch) | 2.5591 |
| Insert Style | RCMT 1204 |
| Internal or External | External |
| Center to Cutting Edge (mm) | 6.00 |
| Center to Cutting Edge (Decimal Inch) | 0.2362 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Maximum Hole Depth (mm) | 65.00 |
| Maximum Hole Depth (Decimal Inch) | 2.5591 |
| Neck Diameter (mm) | 63.00 |
| Neck Diameter (Decimal Inch) | 2.4803 |
| Complete Insert Compatibility | RCMT 1204M0-F1; RCMT 1204M0-F2; RCMT 1204M0-M3 |
