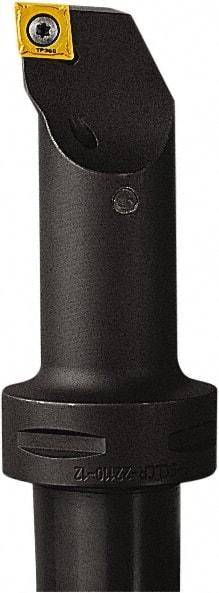

Seco - Right Hand Cut, Size C5, CC.. 09T3 Insert Compatiblity, Internal Modular Turning & Profiling Cutting Unit Head - 11mm Ctr to Cutting Edge, 70mm Head Length, Series Seco-Capto
Item #: 70483078
Brand: Seco
Model #: 94268
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C5 |
| Series Name | Seco-Capto |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 70.00 |
| Head Length/Projection (Decimal Inch) | 2.7559 |
| Insert Style | CC.. 09T3 |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 11.00 |
| Center to Cutting Edge (Decimal Inch) | 0.4331 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Axial Rake Angle | 0 |
| Neck Diameter (mm) | 50.00 |
| Neck Diameter (Decimal Inch) | 1.9685 |
| Complete Insert Compatibility | CC.. 09T3.. |
