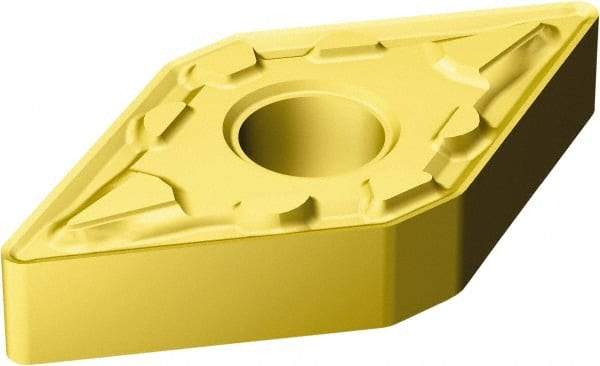

Sandvik Coromant - DNMG433 MM Grade 2025 Carbide Turning Insert - TiCN/AI2O3/TiN Finish, 55° Diamond, 1/2" Inscr Circle, 3/16" Thick, 3/64" Corner Radius
Item #: 70466271
Brand: Sandvik Coromant
Model #: 5733569
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMG |
| Insert Size | 433 |
| Material | Carbide |
| Length (mm) | 14.30 |
| Length (Decimal Inch) | 0.5632 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Thickness (mm) | 4.76 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (mm) | 1.1906 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | 2025 |
| Coating | TiCN/AI2O3/TiN |
| Chip Breaker | MM |
| Insert Length (Decimal Inch) | 0.5632 |
| OverallLength (mm) | 15.50 |
| Overall Length (Decimal Inch) | 0.6104 |
| Hole Diameter (mm) | 5.16 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| ISO Number | DNMG 15 04 12-MM 2025 |
| Relief Angle | 0 |
| Included Angle | 55 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
