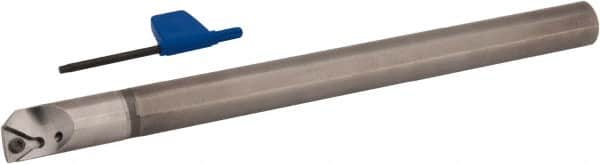

Iscar - 0.815" Min Bore Diam, 10" OAL, 3/4" Shank Diam, E-STLPR Indexable Boring Bar - TP.. 32.52 Insert, Screw Holding Method
Item #: 70351887
Brand: Iscar
Model #: 3601978
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | E-STLPR |
| Series | Isoturn |
| Minimum Bore Diameter (Decimal Inch) | 0.8150 |
| Overall Length (Decimal Inch) | 10.0000 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Compatibility | TP.. 32.52 |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | -5 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.4200 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Rake Angle | 0 |
| Complete Insert Compatibility | TPGB 321-60; TPGB 322-60; TPGH 321-R; TPMT 321; TPMT 322 |
| Toolholder Material | Carbide |
