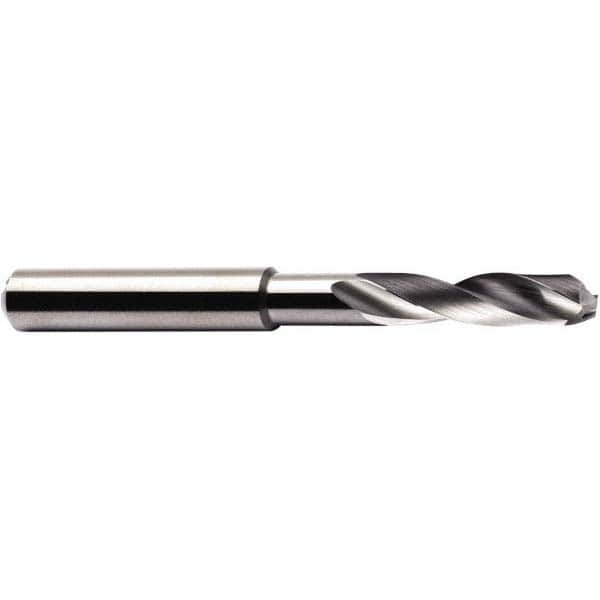

Screw Machine Length Drill Bit: 0.2047″ Dia, 140 °, Solid Carbide Multilayer TiAlN Finish, Right Hand Cut, Spiral Flute, Series SD203A
Item #: 70253315
Brand: Seco
Model #: 02691557
Product Specifications
| Drill Bit Size (mm) | 5.20 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Multilayer TiAlN |
| Drill Point Angle | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Coolant Through | Yes |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.2360 |
| Drill Bit Size (Decimal Inch) | 0.2047 |
| Overall Length (Decimal Inch) | 2.5980 |
| Series | SD203A |
| Maximum Drilling Depth (Decimal Inch) | 0.7900 |
| Shank Length (Decimal Inch) | 1.4170 |
| Flute By Diameter Ratio | 3xD |
| Flute Length (Decimal Inch) | 1.1020 |
| Drill Bit Size Range (Decimal Inch) | 0.2000 to 0.2500 |
| Drill Bit Size Range (mm) | 5.00 to 6.50 |
| Specification Designation | DIN |
