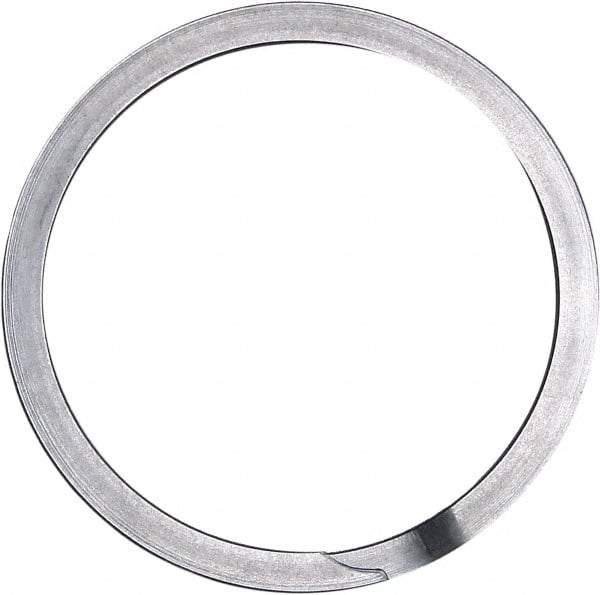

Rotor Clip - 2.721" Groove Diam, 2-7/8" Shaft Diam, Oil Stainless Steel, Spiral External Retaining Rings - 0.103" Groove Width, 0.077" Groove Depth, 0.093" Ring Thickness, Grade 302
Item #: 70232285
Brand: Rotor Clip
Model #: CG-287SJ
Exact Tooling IR#: 04
Features and Benefits
Spiral external retaining rings make complete, 360-degree contact with the outside of a shaft once installed. They offer more clearance because they do not have removal lugs.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Spiral |
| System of Measurement | Inch |
| Shaft Diameter (Inch) | 2-7/8 |
| Shaft Diameter (Decimal Inch) | 2.8750 |
| Groove Diameter (Decimal Inch) | 2.7210 |
| Free Diameter (Decimal Inch) | 2.7020 |
| Free Outside Diameter (Decimal Inch) | 3.1520 |
| Military Specification | Does Not Meet Military Specifications |
| Material | Stainless Steel |
| Finish/Coating | Oil |
| Material Grade | 302 |
| Groove Width (Decimal Inch) | 0.1030 |
| Groove Depth (Decimal Inch) | 0.0770 |
| Ring Thickness (Decimal Inch) | 0.0930 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0060 to 0.0060 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.005 |
| Free Diameter Tolerance (Decimal Inch) | -0.030 to 0.000 |
| Ring Thickness Tolerance (Decimal Inch) | -0.003 to 0.003 |
| Fastener Standard | AISI 302; AMS-5866 |
