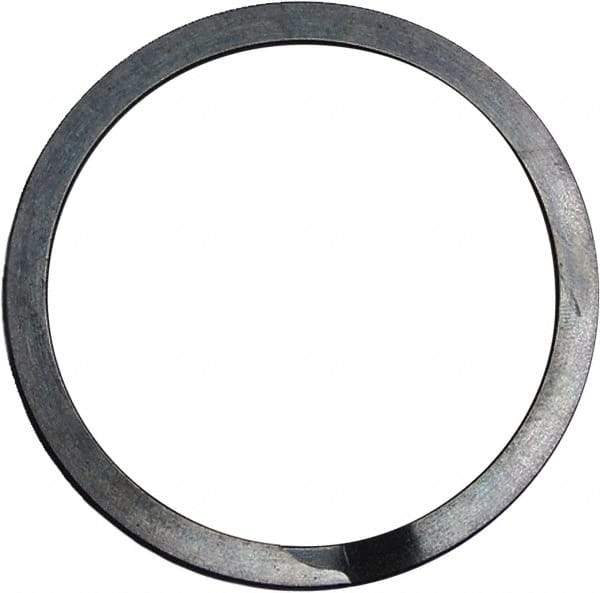

Rotor Clip - 3.792" Groove Diam, 4" Shaft Diam, Oil Over Steel Steel, Spiral External Retaining Rings - 0.12" Groove Width, 0.104" Groove Depth, 0.111" Ring Thickness, Grade 1060-1090
Item #: 70231956
Brand: Rotor Clip
Model #: CG-400ST OIL
Exact Tooling IR#: 04
Features and Benefits
Spiral external retaining rings make complete, 360-degree contact with the outside of a shaft once installed. They offer more clearance because they do not have removal lugs.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| Type | Spiral |
| System of Measurement | Inch |
| Shaft Diameter (Inch) | 4 |
| Shaft Diameter (Decimal Inch) | 4.0000 |
| Groove Diameter (Decimal Inch) | 3.7920 |
| Free Diameter (Decimal Inch) | 3.7650 |
| Free Outside Diameter (Decimal Inch) | 4.3050 |
| Military Specification | Does Not Meet Military Specifications |
| Material | Steel |
| Finish/Coating | Oil Over Steel |
| Material Grade | 1060-1090 |
| Groove Width (Decimal Inch) | 0.1200 |
| Groove Depth (Decimal Inch) | 0.1040 |
| Ring Thickness (Decimal Inch) | 0.1110 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0060 to 0.0060 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.005 |
| Free Diameter Tolerance (Decimal Inch) | -0.035 to 0.000 |
| Ring Thickness Tolerance (Decimal Inch) | -0.003 to 0.003 |
| Fastener Standard | SAE 1060-1090; UNS G10600-G10900 |
