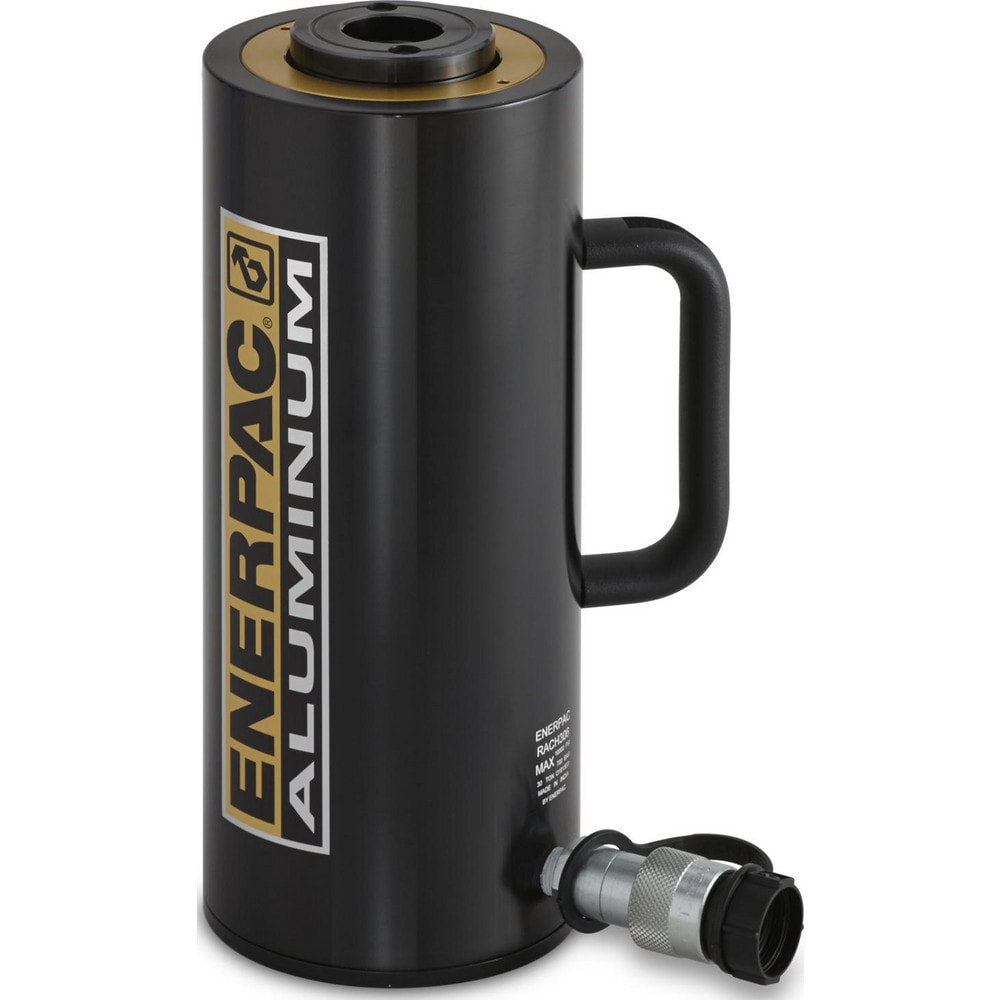

Portable Hydraulic Cylinders; Actuation: Single Acting; Load Capacity: 40; Stroke Length: 1.97; Oil Capacity: 15.59; Cylinder Bore Diameter (Decimal Inch): 3.74; Cylinder Effective Area: 1; Lowered Height: 8.20
Item #: 30779789
Brand: Enerpac
Model #: RACH302
Product Specifications
| Actuation | Single Acting |
| Load Capacity | 40 |
| Stroke Length | 1.97 |
| Oil Capacity | 15.59 |
| Cylinder Bore Diameter (Decimal Inch) | 3.74 |
| Cylinder Effective Area | 1 |
| Lowered Height | 8.20 |
| Retracted Length | 8 |
| Extended Length | 10.17 |
| Cushion Type | No Cushion |
| Bore Diameter | 3.7400 |
| Outside Diameter | 5.12 in |
| Plunger Type | Hollow |
| Maximum Working Pressure | 10000.000 |
| Body Material | Aluminum |
| Saddle Diameter | 2.76 |
| Series | RACH |
| Y Center Hole Diameter | 1.34 |
| Maximum Height (Inch) | 10.1700 |
| Includes | CR400 Coupler; Dust Cap |
| UNSPSC Code | 27121602 |
