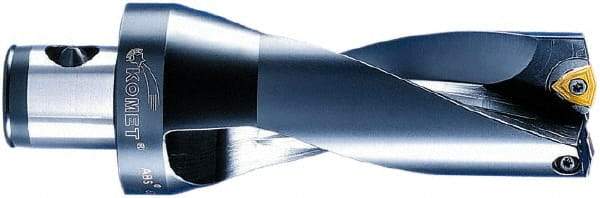

Komet - 144mm Max Drill Depth, 3xD, 48mm Diam, Indexable Insert Drill - 2 Inserts, ABS 63 Modular Connection Shank
Item #: 70111661
Brand: Komet
Model #: V1374800
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | V13 |
| Drill Diameter (mm) | 48.00 |
| Drill Diameter (Decimal Inch) | 1.8898 |
| Maximum Drill Depth (mm) | 144.00 |
| Maximum Drill Depth (Decimal Inch) | 5.6693 |
| Shank Type | Modular Connection |
| Modular Connection Size | ABS 63 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 2.0079 |
| Maximum Drill Diameter (mm) | 51.00 |
| Overall Length/Projection (mm) | 199.00 |
| Overall Length/Projection (Decimal Inch) | 7.8346 |
| Insert Compatibility | WOEX 080404 |
| Body Length (Decimal Inch) | 7.8346 |
| Body Length (mm) | 199.00 |
| Series | KUB |
