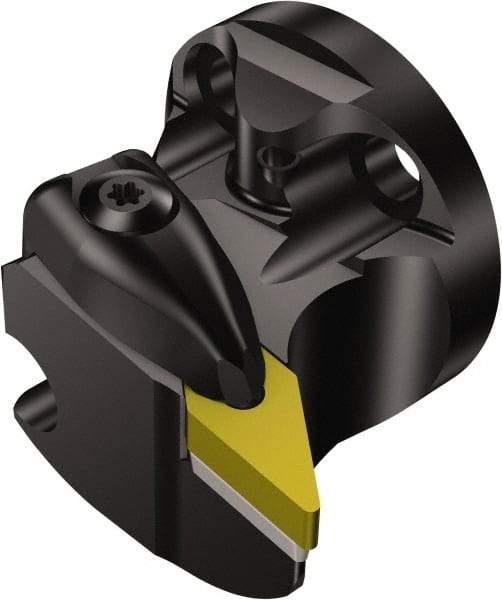

Sandvik Coromant - Left Hand Cut, Size 40, VBMT 160408 Insert Compatiblity, Internal or External Modular Turning & Profiling Cutting Unit Head - 30mm Ctr to Cutting Edge, 36mm Head Length, Through Coolant, Series T-Max P
Item #: 70102538
Brand: Sandvik Coromant
Model #: 5764350
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | 40 |
| Series Name | T-Max P |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 36.00 |
| Head Length/Projection (Decimal Inch) | 1.4173 |
| Insert Style | VBMT 160408 |
| Internal or External | Internal or External |
| Center to Cutting Edge (mm) | 30.00 |
| Center to Cutting Edge (Decimal Inch) | 1.1811 |
| Insert Holding Method | Wedge |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 36.00 |
| Maximum Hole Depth (Decimal Inch) | 1.4173 |
| Minimum Hole Diameter (mm) | 52.00 |
| Minimum Hole Diameter (Decimal Inch) | 2.0472 |
| Axial Rake Angle | -6 |
| Radial Rake Angle | -8 |
| Neck Diameter (mm) | 40.00 |
| Neck Diameter (Decimal Inch) | 1.5748 |
| Complete Insert Compatibility | VNMG 160408 |
