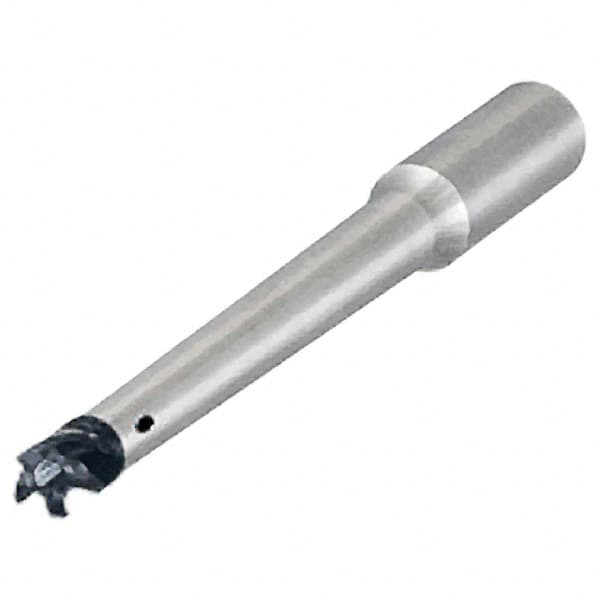

Iscar - Multimaster 32mm 89° Shank Milling Tip Insert Holder & Shank - T15 Neck Thread, 300mm OAL, Carbide MM S-D Tool Holder
Item #: 70099916
Brand: Iscar
Model #: 3105412
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Shank Type | 89 Degree Shank |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2600 |
| Neck Thread Size | T15 |
| Toolholder Material | Carbide |
| Overall Length (mm) | 300.00 |
| Overall Length (Decimal Inch) | 11.8110 |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Head Length (Decimal Inch) | 7.7050 |
| Effective Length (mm) | 200.00 |
| Effective Length (Decimal Inch) | 7.8740 |
| Milling Tip Style | ERW-MM, FF EWX-MM-05, H400 ER-MM, HCM-MM, MM EA, MM EB, MM ECF45, MM EFS, MM ERS |
| Shank Shape | Straight |
| Toolholder Style | MM S-D |
