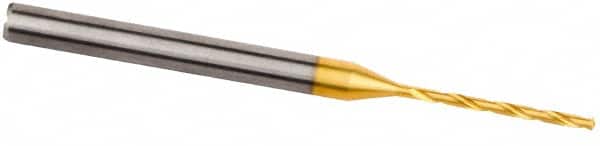

Screw Machine Length Drill Bit: 0.0748″ Dia, 140 °, Solid Carbide TiN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series B051CPG
Item #: 70090196
Brand: Kennametal
Model #: 4148808
Product Specifications
| Drill Bit Size (mm) | 1.90 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiN |
| Drill Point Angle | 140 |
| Flute Type | Spiral |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.1575 |
| Drill Bit Size (Decimal Inch) | 0.0748 |
| Overall Length (mm) | 58.00 |
| Overall Length (Decimal Inch) | 2.2835 |
| Shank Diameter (mm) | 4.00 |
| Series | B051CPG |
| Maximum Drilling Depth (mm) | 6.00 |
| Shank Length (Decimal Inch) | 1.1024 |
| Shank Length (mm) | 28.00 |
| Drill Point Length (mm) | 0.30 |
| Flute By Diameter Ratio | 3xD |
| Flute Length (mm) | 9.00 |
| Drill Bit Size Range (Decimal Inch) | 0.0000 to 0.1000 |
| Drill Bit Size Range (mm) | 0.00 to 3.50 |
