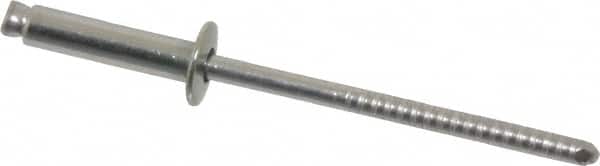

RivetKing - Size 46 Dome Head Stainless Steel Open End Blind Rivet - Stainless Steel Mandrel, 0.313" to 3/8" Grip, 1/4" Head Diam, 0.129" to 0.133" Hole Diam, 0.525" Length Under Head, 1/8" Body Diam
Item #: 70071600
Brand: RivetKing
Model #: FBF46/P100
Exact Tooling IR#: 04
Features and Benefits
Open end rivets are used when disassembly is difficult or not required.
Dome head types have domed, cylindrical heads with low profiles. They are commonly used for their large bearing surface and versatility.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Open End |
| Head Type | Dome |
| Size Code | 46 |
| Rivet Material | Stainless Steel |
| Mandrel Material | Stainless Steel |
| Minimum Grip (Decimal Inch) | 0.3130 |
| Maximum Grip (Decimal Inch) | 0.3750 |
| Maximum Grip (Inch) | 3/8 |
| Head Diameter (Decimal Inch) | 0.2500 |
| Head Diameter (Inch) | 1/4 |
| Minimum Hole Diameter (Decimal Inch) | 0.1290 |
| Maximum Hole Diameter (Decimal Inch) | 0.1330 |
| Rivet Material Grade | 18-8 |
| Mandrel Material Grade | 18-8 |
| Drill Size (Wire) | #30 |
| Length Under Head (Decimal Inch) | 0.5250 |
| Body Diameter (Decimal Inch) | 0.1250 |
| Body Diameter (Inch) | 1/8 |
| Shear Strength (Lb.) | 420.00 |
| Tensile Strength (Lb.) | 530.00 |
| Fastener Standard | IFI 114 Grade 51 |
| Head Height (Decimal Inch) | 0.0400 |
