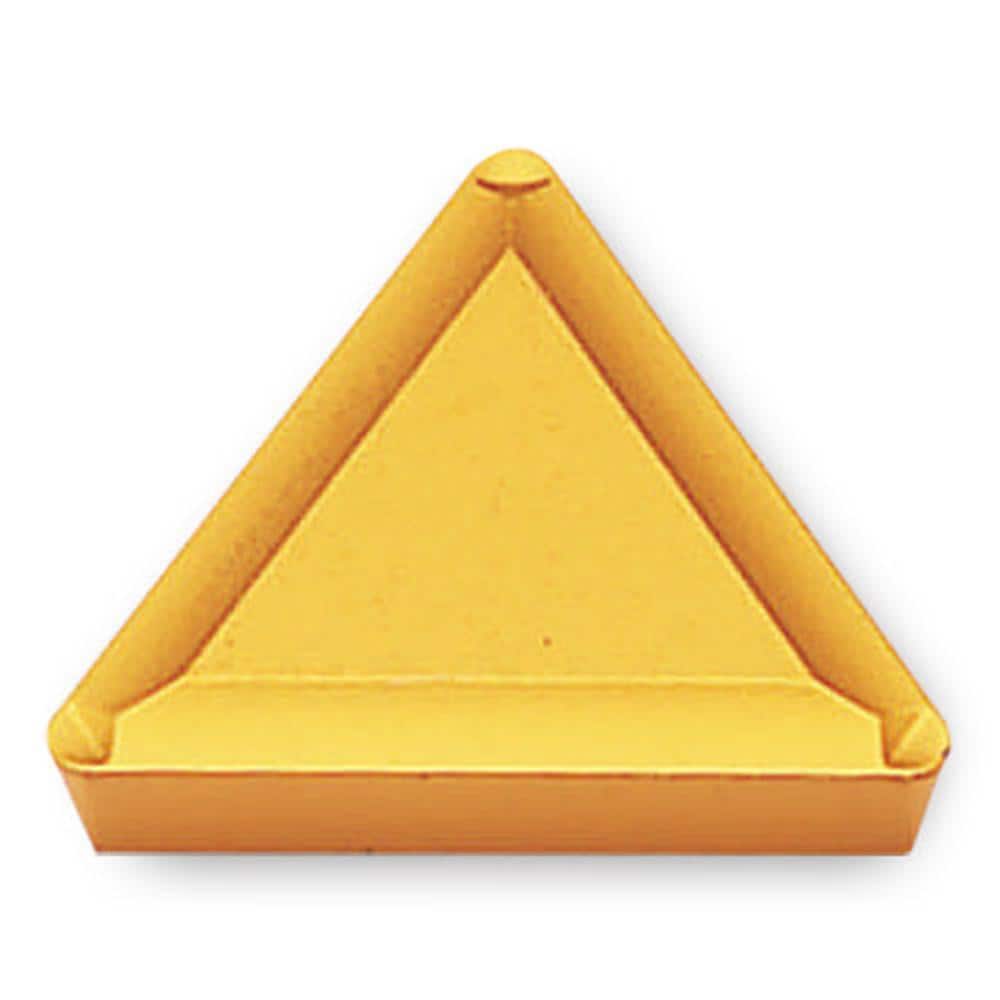

Turning Insert: TPMR432 TT5100, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 0.8660″ Long, 1/2″ Inscribed Circle, 0.0310″ Corner Radius, 60.0 ° N/A Triangle, Series TPMR
Item #: 70061957
Brand: Ingersoll Cutting Tools
Model #: 5515119
Product Specifications
| Insert Style | TPMR |
| Insert Shape Code | T |
| Insert Size Code | 432 |
| Insert Shape | Triangle |
| Clearance Code | P |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TT5100 |
| Maximum Depth of Cut (Decimal Inch) | 0.2760 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 60.0 |
| Relief Angle | 11 |
| Series | TPMR |
| Coating Process | CVD |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.8660 |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Ansi Code | TPMR432TT5100 |
| Iso Code | TPMR220408 TT5100 |
| Chip Breaker | Common |
| Width (Decimal Inch - 4 Decimals) | 0.8660 |
| Coating/Finish | TiCN; TiN; Al2O3 |
