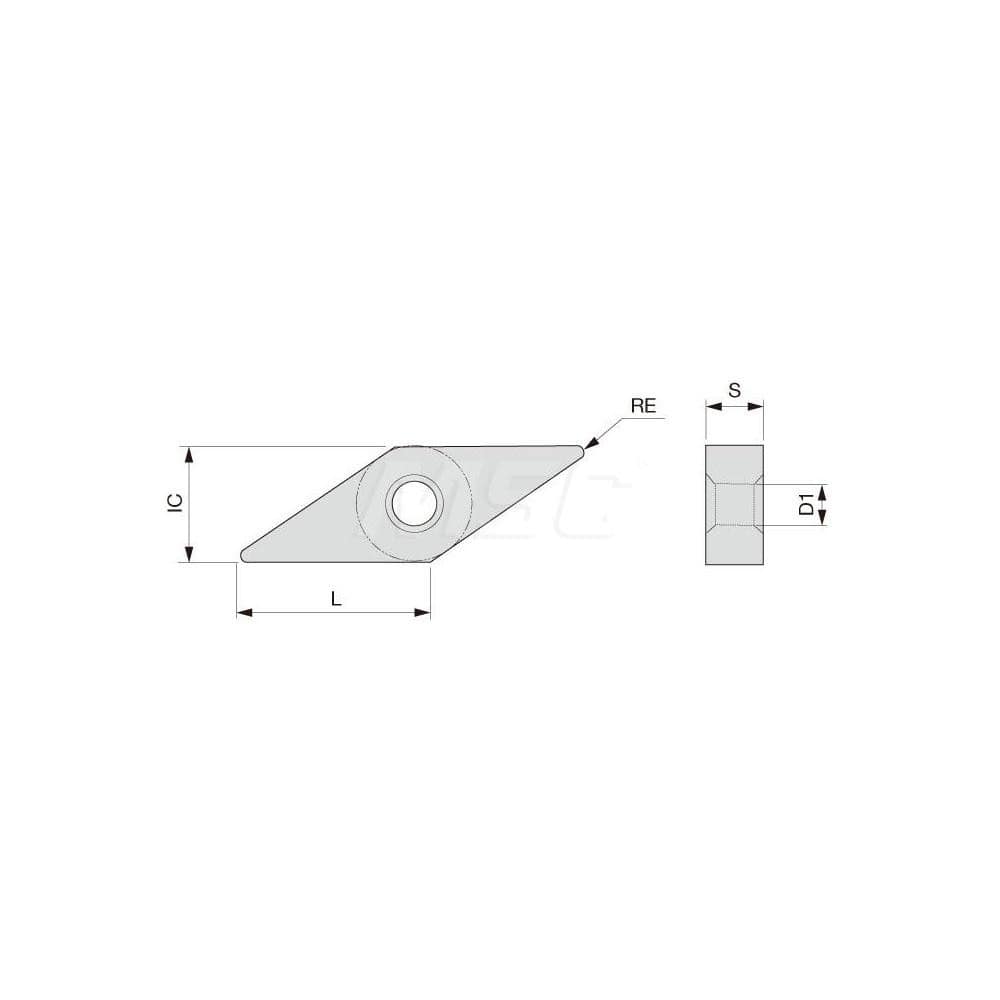

Turning Insert
Item #: 69969665
Brand: Tungaloy
Model #: 6707280
Product Specifications
| Insert Style | VNMG |
| Insert Shape Code | V |
| Insert Size Code | 331 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Cermet |
| Manufacturer Grade | GT9530 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 35.0 |
| Series | VNMG |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.6540 |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Iso Code | VNMG 331 TQ |
| Standards | ISO |
| Chip Breaker | TQ |
| Coating/Finish | Coated |
