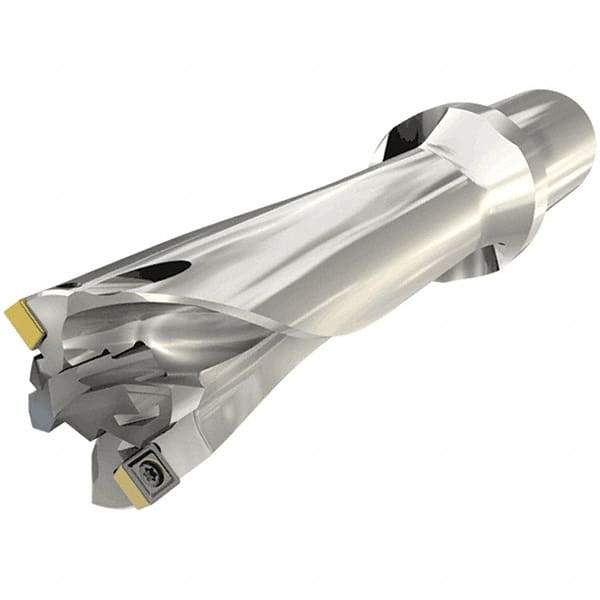

Iscar - 20.5 to 37.5mm Diam, 5xD, 188mm Max Depth, 32mm Shank Diam, 287.6mm OAL, Replaceable Tip Drill - ICP, SOGT-W Insert, MNC Toolholder, Series Combicham
Item #: 69917193
Brand: Iscar
Model #: 3260184
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | CombiCham |
| Minimum Drill Diameter (mm) | 20.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.8071 |
| Maximum Drill Diameter (mm) | 37.50 |
| Maximum Drill Diameter (Decimal Inch) | 1.4764 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 7.4016 |
| Maximum Drill Depth (mm) | 188.00 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Insert Style | ICP; SOGT-W |
| Toolholder Style | MNC |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Tip Length (mm) | 4.10 |
| Tip Length (Decimal Inch) | 0.1614 |
| Body Length (mm) | 227.60 |
| Body Length (Decimal Inch) | 8.9606 |
| Overall Length (mm) | 287.60 |
| Overall Length (Decimal Inch) | 11.3228 |
| Shank Length (mm) | 60.00 |
| Shank Length (Decimal Inch) | 2.3622 |
