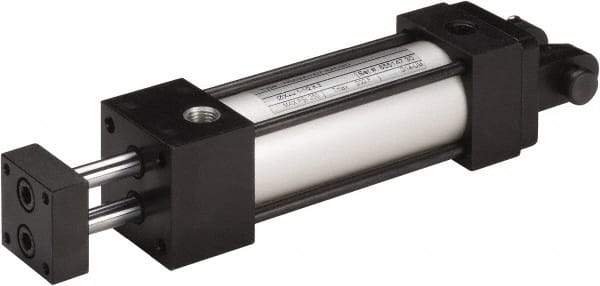

Norgren - 1" Stroke x 1-1/2" Bore Double Acting Air Cylinder - 1/4 Port, 250 Max psi, -20 to 200°F
Item #: 69830206
Brand: Norgren
Model #: NC01A-N07-AACM0
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Double Acting |
| Bore Size (Inch) | 1-1/2 |
| Bore Size (Decimal Inch) | 1.500 |
| Rod Diameter (Inch) | 3/8 |
| Stroke Length (Inch) | 1 |
| Stroke Length (Decimal Inch) | 1.0000 |
| Mounting Style | Clevis |
| Port Size | 1/4 |
| Port Type | NPT |
| Width (Decimal Inch) | 2.0000 |
| Length (Decimal Inch) | 8.375 |
| Seal Material | Nitrile |
| Maximum Working Pressure (psi) | 250 |
| Style | Square |
| Cushions | None |
