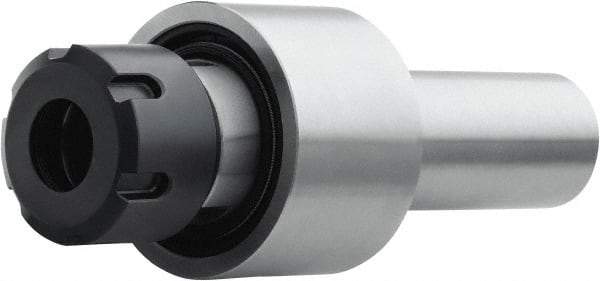

Komet - Straight Shank, Series ER25, ER Reamer Collet Chuck - 3.3071 Inch Projection, 0.1185 to 0.6299 Inch Collet Capacity, 2.3622 Inch Shank Length, Through Coolant
Item #: 69757870
Brand: Komet
Model #: 57B4000010
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER25 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Projection (Decimal Inch) | 3.3071 |
| Projection (mm) | 84 |
| Through Coolant | Yes |
| Minimum Collet Capacity (mm) | 3.01 |
| Minimum Collet Capacity (Decimal Inch) | 0.1185 |
| Maximum Collet Capacity (mm) | 16.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.6299 |
| Overall Length (Decimal Inch) | 5.6693 |
| Shank Length (Decimal Inch) | 2.3622 |
| Hex Diameter (Decimal Inch) | 1.6535 |
| Float From Center (mm) | 0.08 |
| Float From Center (Decimal Inch) | 0.0032 |
| PSC Code | 5136 |
