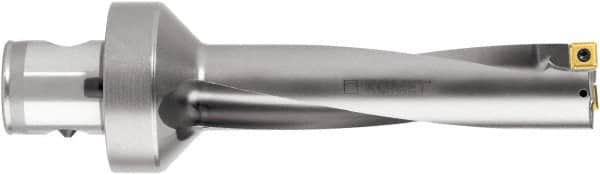

Komet - 195mm Max Drill Depth, 5xD, 38.5mm Diam, Indexable Insert Drill - 2 Inserts, ABS 63 Modular Connection Shank
Item #: 69757490
Brand: Komet
Model #: U4563850
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | U45 |
| Drill Diameter (mm) | 38.50 |
| Drill Diameter (Decimal Inch) | 1.5157 |
| Maximum Drill Depth (mm) | 195.00 |
| Maximum Drill Depth (Decimal Inch) | 7.6772 |
| Shank Type | Modular Connection |
| Modular Connection Size | ABS 63 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.5354 |
| Maximum Drill Diameter (mm) | 39.00 |
| Overall Length/Projection (mm) | 238.00 |
| Overall Length/Projection (Decimal Inch) | 9.3701 |
| Insert Compatibility | SOGX 120408 |
| Body Length (Decimal Inch) | 9.3701 |
| Body Length (mm) | 238.00 |
| Series | KUB Pentron |
