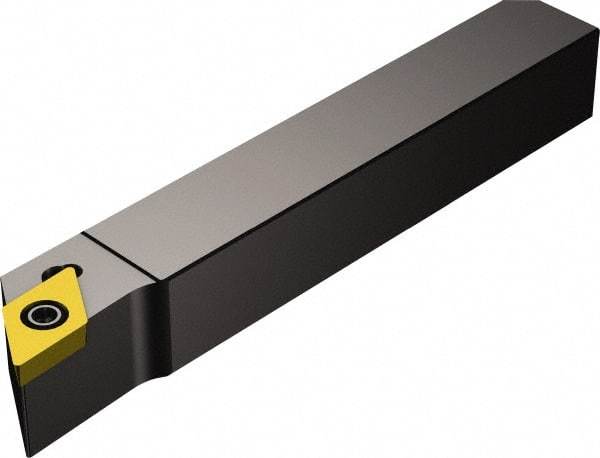

Sandvik Coromant - QS-SDJCR, Right Hand Cut, -3° Lead Angle, 1/2" Shank Height x 1/2" Shank Width, Neutral Rake Indexable Turning Toolholder - 70mm OAL, DCMT 32.52 Insert Compatibility, Series CoroTurn 107
Item #: 69694768
Brand: Sandvik Coromant
Model #: 5739184
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | QS-SDJCR |
| Rake | Neutral |
| Rake Angle | 0 |
| Series | CoroTurn 107 |
| Lead Angle | -3 |
| Shank Width (Inch) | 1/2 |
| Shank Width (mm) | 12.70 |
| Shank Width (Decimal Inch) | 0.5000 |
| Shank Height (Inch) | 1/2 |
| Shank Height (mm) | 12.70 |
| Shank Height (Decimal Inch) | 0.5000 |
| Overall Length (mm) | 70.00 |
| Overall Length (Decimal Inch) | 2.7559 |
| Insert Compatibility | DCMT 32.52 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Profiling; Facing |
| Insert Holding Method | Screw Clamping |
| Back of Bar to Cutting Edge (mm) | 70.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 2.7559 |
| Head Length (mm) | 20.00 |
| Head Length (Decimal Inch) | 0.7874 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Width (Inch) | 3/8 |
| Insert Width (Decimal Inch) | 0.3750 |
| Toolholder Material | Steel |
