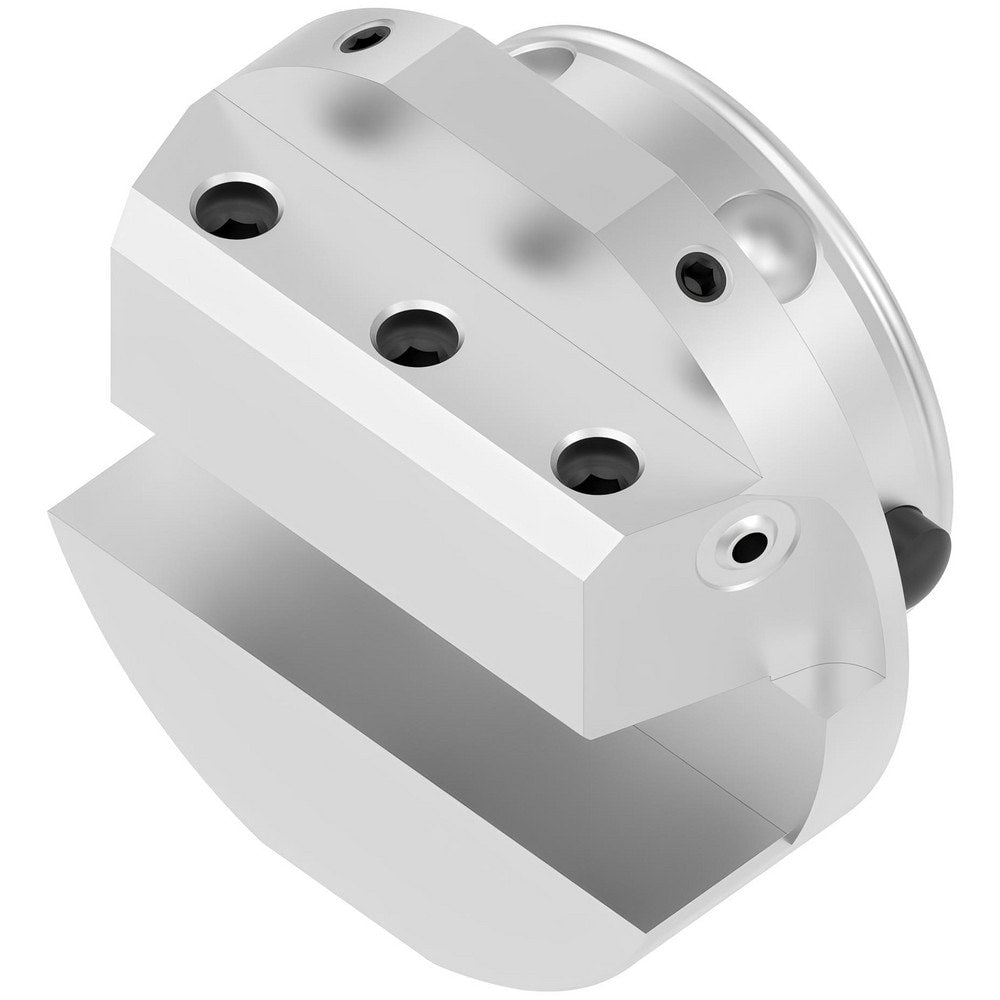

Boring Bar Holders & Adapters; Inside Modular Connection Size: BA120; Bore Diameter (mm): 25.0000; Bore Diameter (Inch): 1; Bore Diameter (Decimal Inch): 0.9845; Bore Depth (mm): 25.00; Bore Depth (Decimal Inch): 0.9843; Outside Modular Connection Size: 2
Item #: 82878703
Brand: Seco
Model #: 10144415
Product Specifications
| Inside Modular Connection Size | BA120 |
| Bore Diameter (mm) | 25.0000 |
| Bore Diameter (Inch) | 1 |
| Bore Diameter (Decimal Inch) | 0.9845 |
| Bore Depth (mm) | 25.00 |
| Bore Depth (Decimal Inch) | 0.9843 |
| Outside Modular Connection Size | 25.00 mm |
| Connection Size | 25 |
| Body Diameter (mm) | 120.000 |
| Hole Diameter (Mm) ( - 0 Decimals) | 120.0000 |
| Nose Diameter (Mm) ( - 2 Decimals) | 120.00 |
| Shank Diameter (mm) | 120.0000 |
| Through Coolant | Yes |
| Lock Screw Size (mm) | 120.00 |
| Projection (mm) | 25.000 |
| Coolant Type | External |
| Material | Steel |
| Overall Length (mm) | 65 |
| Type | Steadyline |
| Body Length (Decimal Inch) | 1.5748 |
| Coolant Screw Size (mm) | 0.00 |
| Lock Screw Compatibility | Yes |
| Manufacturer's Part Number | 10144415 |
| Additional Information | Steadyline Is A Modular Anti-Vibration Tooling System Consisting Of Dampened Bars, Providing An Easily Exchangeable Head With The Accurate And Reliable GL Interface. To Add Applicability, The Bars Are Highly Capable Both For Problem-Free Long-Overhang Internal Turning As Well As Rotating Boring Applications. |
| Body Length | 40.000 |
| UNSPSC Code | 27112800 |
| Country of Origin | France |
