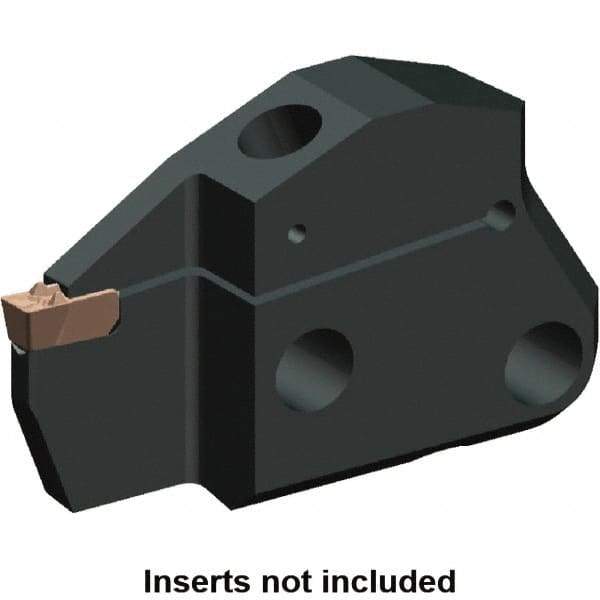

Kennametal - System Size 50, Left Hand Cut, 1.024" Max Depth of Cut, 0.197" Max Width of Cut, Modular Cutoff Cutting Unit Head - A2, A3, A4 Insert Style, 2.431" Head Length, 0.371" Center to Cutting Edge, Series Beyond Evolution
Item #: 69587996
Brand: Kennametal
Model #: 5955419
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | 50 |
| Series Name | Beyond Evolution |
| Cutting Direction | Left Hand |
| Maximum Depth of Cut (mm) | 26.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.0240 |
| Maximum Width of Cut (mm) | 5.00 |
| Maximum Width of Cut (Decimal Inch) | 0.1970 |
| Insert Style | A2; A3; A4 |
| Head Length/Projection (mm) | 61.75 |
| Head Length/Projection (Decimal Inch) | 2.4310 |
| Center to Cutting Edge (mm) | 9.43 |
| Center to Cutting Edge (Decimal Inch) | 0.3710 |
| Complete Insert Compatibility | EG0500M05P04 |
