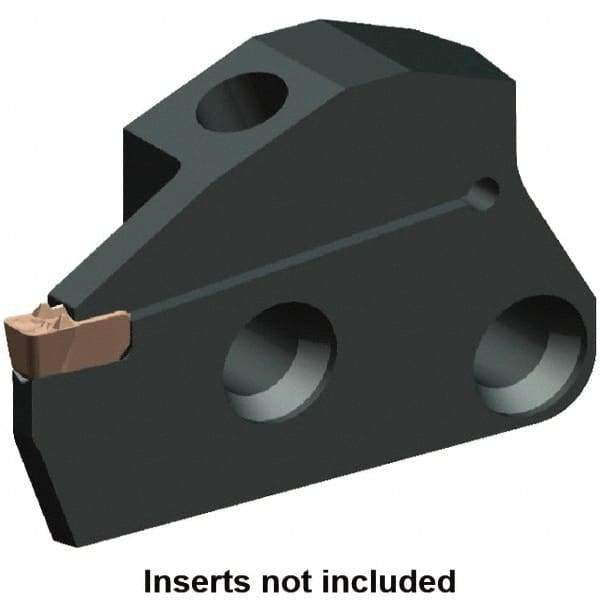

Kennametal - System Size 50, Right Hand Cut, 0.63" Max Depth of Cut, 0.079" Max Width of Cut, Modular Cutoff Cutting Unit Head - A2, A3, A4 Insert Style, 2.037" Head Length, 0.428" Center to Cutting Edge, Series Beyond Evolution
Item #: 69587954
Brand: Kennametal
Model #: 5955423
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | 50 |
| Series Name | Beyond Evolution |
| Cutting Direction | Right Hand |
| Maximum Depth of Cut (mm) | 16.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.6300 |
| Maximum Width of Cut (mm) | 2.00 |
| Maximum Width of Cut (Decimal Inch) | 0.0790 |
| Insert Style | A2; A3; A4 |
| Head Length/Projection (mm) | 51.75 |
| Head Length/Projection (Decimal Inch) | 2.0370 |
| Center to Cutting Edge (mm) | 10.88 |
| Center to Cutting Edge (Decimal Inch) | 0.4280 |
| Complete Insert Compatibility | EG0200M02P02 |
