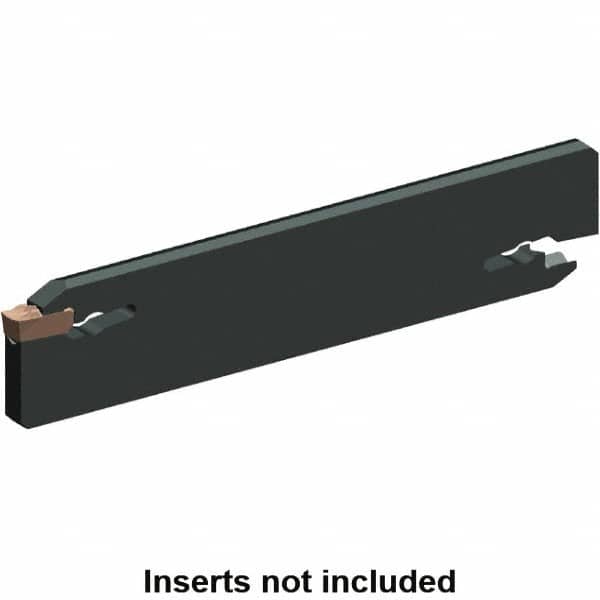

Kennametal - 1-25/32" Blade Height, 0.315" Blade Width, 10.236" OAL, Neutral Cut, Double End Indexable Cut-Off Blade - EVBS Blade, Beyond Evolution Series
Item #: 69587533
Brand: Kennametal
Model #: 5977721
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Double |
| Cutting Direction | Neutral |
| Blade Height (mm) | 45.25 |
| Blade Height (Decimal Inch) | 1.7810 |
| Blade Width (mm) | 8.00 |
| Blade Width (Decimal Inch) | 0.3150 |
| Blade Overall Length (mm) | 260.00 |
| Blade Overall Length (Decimal Inch) | 10.2360 |
| Blade Style | EVBS |
| Insert Style | EG0800M08P04 |
| Insert Width (mm) | 8.00 |
| Insert Width (Decimal Inch) | 0.3150 |
| Series | Beyond Evolution |
| Insert Seat Size | 8 |
| Insert Holding Method | Clamp |
| Cutting Height (mm) | 45.25 |
| Cutting Height (Decimal Inch) | 1.7810 |
| Minimum Insert Width (mm) | 8.00 |
| Minimum Insert Width (Decimal Inch) | 0.3150 |
