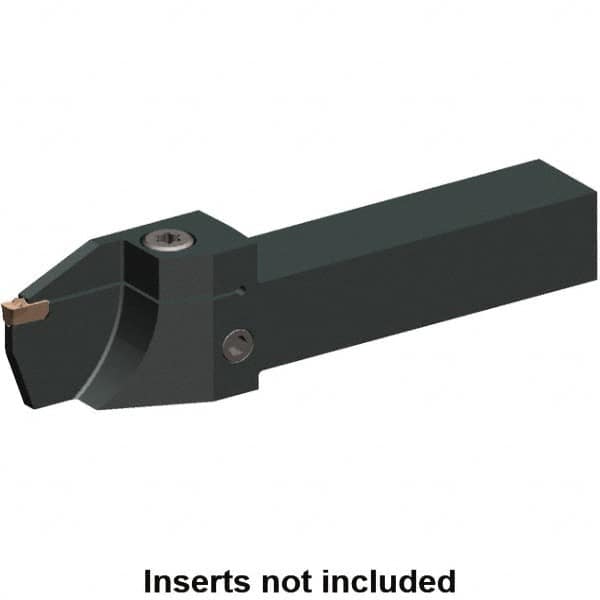

Kennametal - External Thread, 0.63" Max Depth of Cut, 3mm Min Groove Width, 6" OAL, Left Hand Indexable Grooving Cutoff Toolholder - 3 Seat Size, 1" Shank Height x 1" Shank Width, EG0300M03P02 Insert Style, EVSC-T Toolholder Style, Series Beyond Evolution
Item #: 69577112
Brand: Kennametal
Model #: 5981018
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 16.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.6300 |
| Minimum Groove Width (Decimal Inch) | 0.1180 |
| Minimum Groove Width (mm) | 3.00 |
| Maximum Groove Width (Decimal Inch) | 0.1180 |
| Maximum Groove Width (mm) | 3.00 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (mm) | 152.40 |
| Series | Beyond Evolution |
| Toolholder Style | EVSC-T |
| Insert Compatibility | EG0300M03P02 |
| Shank Height (mm) | 25.40 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (mm) | 25.40 |
| Shank Width/Diameter (Inch) | 1 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.0000 |
| Head Height (mm) | 33.90 |
| Head Height (Decimal Inch) | 1.3350 |
| Head Length (mm) | 37.00 |
| Head Length (Decimal Inch) | 1.4570 |
| Shank Length (Decimal Inch) | 4.5430 |
| Shank Length (mm) | 115.40 |
| Mount Size | 1616 |
| Complete Insert Compatibility | EG0300M03P02 |
| Insert Seat Size | 3.0 |
