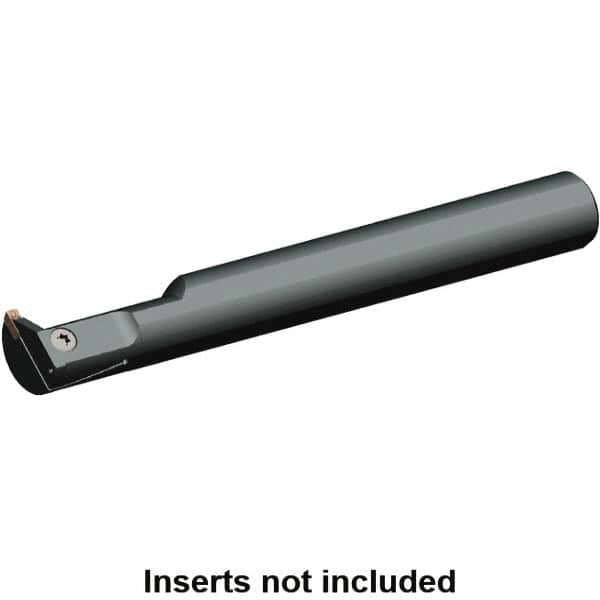

Kennametal - 1-1/2" Min Bore Diam, 250mm OAL, 1-1/4" Shank Diam, A-EVE Indexable Boring Bar - 63.4mm Max Bore Depth, EG0300M03P02 Insert, Clamp Holding Method
Item #: 69571982
Brand: Kennametal
Model #: 5954301
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-EVE |
| Series | Beyond Evolution |
| Minimum Bore Diameter (mm) | 38.10 |
| Minimum Bore Diameter (Inch) | 1-1/2 |
| Minimum Bore Diameter (Decimal Inch) | 1.5000 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 63.40 |
| Maximum Bore Depth (Decimal Inch) | 2.4960 |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8430 |
| Shank Diameter (mm) | 31.75 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Compatibility | EG0300M03P02 |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Cut-Off |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Clamp |
| Rake | Neutral |
| Neck Diameter (Decimal Inch) | 1.2500 |
| Lead Angle | 0 |
| Back of Bar to Cutting Edge (mm) | 250.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 9.8430 |
| Center to Cutting Edge (mm) | 21.13 |
| Center to Cutting Edge (Decimal Inch) | 0.8320 |
| Rake Angle | 0 |
| Coolant Hole Diameter (mm) | 6.40 |
| Coolant Hole Diameter (Decimal Inch) | 0.2500 |
| Toolholder Material | Steel |
