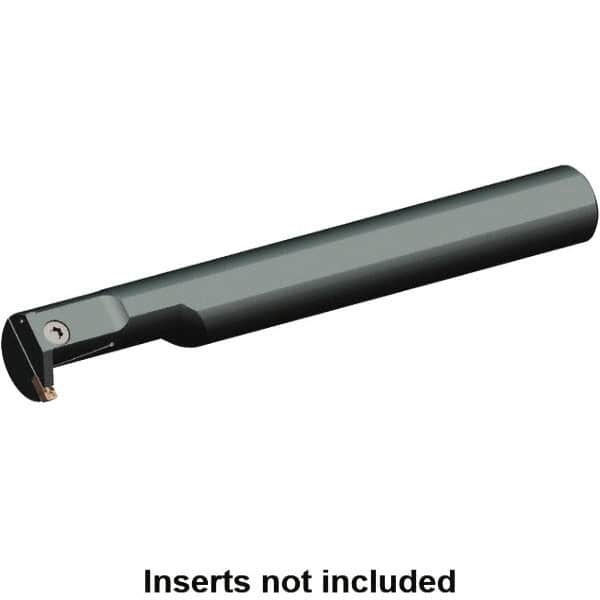

Kennametal - 25mm Min Bore Diam, 180mm OAL, 20mm Shank Diam, A-EVE Indexable Boring Bar - 40.28mm Max Bore Depth, EG0300M03P02 Insert, Clamp Holding Method
Item #: 69571933
Brand: Kennametal
Model #: 5954260
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-EVE |
| Series | Beyond Evolution |
| Minimum Bore Diameter (mm) | 25.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.9840 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 40.28 |
| Maximum Bore Depth (Decimal Inch) | 1.5860 |
| Overall Length (mm) | 180.00 |
| Overall Length (Decimal Inch) | 7.0870 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7900 |
| Insert Compatibility | EG0300M03P02 |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Cut-Off |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Clamp |
| Rake | Negative |
| Neck Diameter (Decimal Inch) | 0.7900 |
| Lead Angle | 0 |
| Back of Bar to Cutting Edge (mm) | 180.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 7.0870 |
| Center to Cutting Edge (mm) | 13.00 |
| Center to Cutting Edge (Decimal Inch) | 0.5120 |
| Rake Angle | -3 |
| Coolant Hole Diameter (mm) | 4.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.1600 |
| Toolholder Material | Steel |
