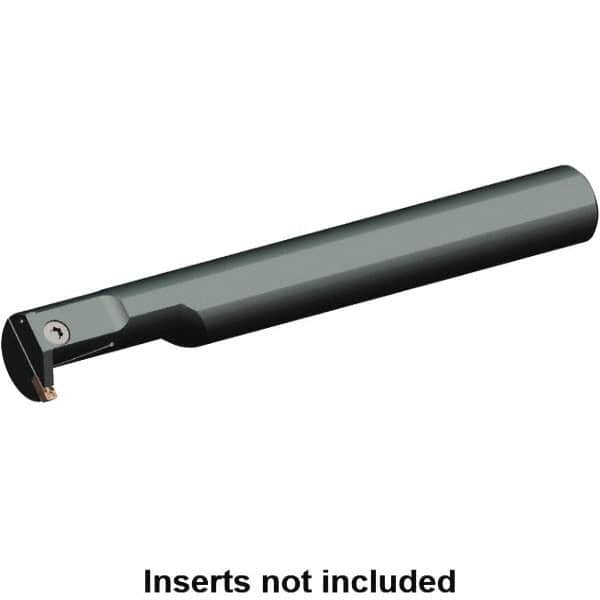

Kennametal - 32mm Min Bore Diam, 200mm OAL, 25mm Shank Diam, A-EVE Indexable Boring Bar - 50.3mm Max Bore Depth, EG0300M03P02 Insert, Clamp Holding Method
Item #: 69571925
Brand: Kennametal
Model #: 5954281
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-EVE |
| Series | Beyond Evolution |
| Minimum Bore Diameter (mm) | 32.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.2600 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 50.30 |
| Maximum Bore Depth (Decimal Inch) | 1.9800 |
| Overall Length (mm) | 200.00 |
| Overall Length (Decimal Inch) | 7.8740 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9840 |
| Insert Compatibility | EG0300M03P02 |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Cut-Off |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Clamp |
| Rake | Neutral |
| Neck Diameter (Decimal Inch) | 0.9840 |
| Lead Angle | 0 |
| Back of Bar to Cutting Edge (mm) | 200.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 7.8740 |
| Center to Cutting Edge (mm) | 17.00 |
| Center to Cutting Edge (Decimal Inch) | 0.6690 |
| Rake Angle | 0 |
| Coolant Hole Diameter (mm) | 6.40 |
| Coolant Hole Diameter (Decimal Inch) | 0.2500 |
| Toolholder Material | Steel |
