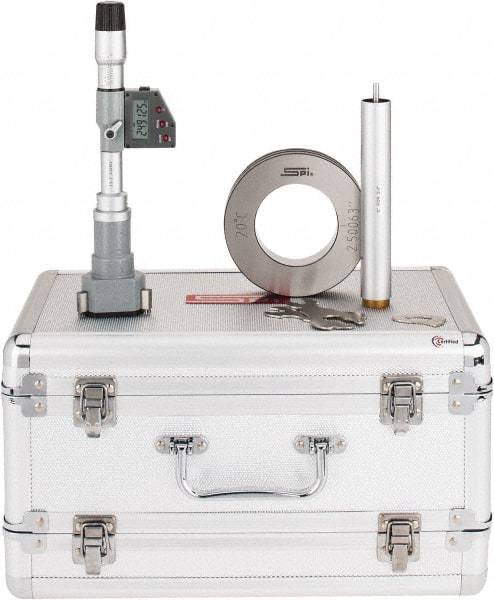

SPI - 2-1/2" to 3", IP65, Carbide Face Chrome Plated Finish, Electronic Inside Micrometer - 0.00005" Resolution, 0.0002" Accuracy, 114" Gage Depth
Item #: 69547768
Brand: SPI
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Measurement (Inch) | 2-1/2 |
| Minimum Measurement (mm) | 62.00 |
| Minimum Measurement (Decimal Inch) | 2.5000 |
| Maximum Measurement (Inch) | 3 |
| Maximum Measurement (Decimal Inch) | 3.0000 |
| Maximum Measurement (mm) | 75.00 |
| Resolution (mm) | 0.0010 |
| Resolution (Decimal Inch) | 0.000050 |
| Accuracy (mm) | 0.0005 |
| Accuracy (Decimal Inch) | 0.0002 |
| Gage Depth (mm) | 114.00 |
| Gage Depth (Decimal Inch) | 4.4900 |
| Thimble Type | Ratchet Stop |
| Traceability Certification Included | NIST |
| Battery Type | LR44 |
| Maximum Extension Rod Length (Decimal Inch) | 6.0000 |
| Water Resistance Rating | IP65 |
| Number of Contact Points | 3 |
| Number of Setting Rings Included | 1 |
| Setting Ring Diameter (Decimal Inch) | 2.5000 |
| Data Output | USB |
| Data Output | Yes |
| Measuring Face Material | Carbide |
| Finish/Coating | Chrome-Plated |
