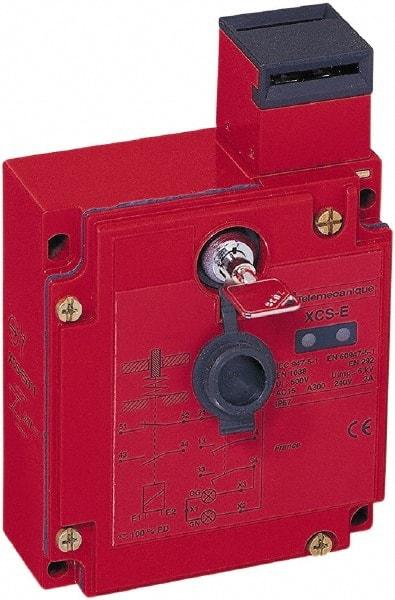

Telemecanique Sensors - 3NC Configuration, 24/48 VAC/VDC, Multiple Amp Level, Metal Key Safety Limit Switch - 98mm Wide x 44mm Deep x 146mm High, IP67 Ingress Rating
Item #: 69533081
Brand: Telemecanique Sensors
Model #: XCSE8311
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Actuator Type | Key |
| Amperage | 0.27 @ 250 V; 0.55 @ 125 V; 1.50 @ 240 V; 3 @ 120 V |
| Voltage | 24/48 VAC/VDC |
| Contact Configuration | 3NC |
| Material | Metal |
| Switch Type | Key Operated General Safety Switch |
| Ingress Protection Rating | IP67 |
| Overall Width (mm) | 98 |
| Overall Height (mm) | 146.00 |
| Overall Depth (mm) | 44.00 |
| Standards Met | CSA C22.2 No. 14; EN 1088/ISO 14119; EN/IEC 60204-1; EN/IEC 60947-5-1; EN/ISO 12100; RoHS Compliant; UL 508; Utilization Category AC-15; Utilization Category DC-13 |
