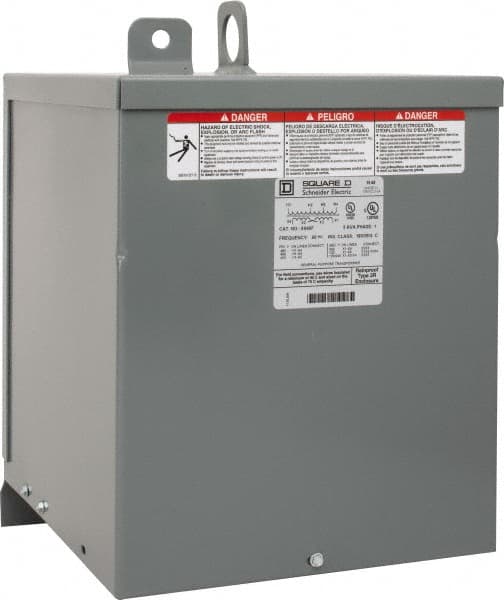

Square D - 1 Phase, 480 Volt Input, 120/240 VAC Output, 60 Hz, 5 kVA, General Purpose Transformer - 3R NEMA Rating, 9.75 Inch Wide x 11-3/4 Inch Deep x 14-3/4 Inch High, Wall Mount
Item #: 69529667
Brand: Square D
Model #: 5S40F
Exact Tooling IR#: 04
Features and Benefits
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase motors.
| Product Specifications | |
|---|---|
| Power Rating (kVA) | 5.0000 |
| Input Voltage | 480 |
| Output Voltage | 120/240 VAC |
| Number of Phases | 1 |
| NEMA Enclosure Rating | 3R |
| Frequency Rating (Hz) | 60 |
| Mounting Type | Wall Mount |
| Overall Width (mm) | 248 |
| Overall Width (Decimal Inch) | 9.7500 |
| Overall Height (mm) | 375 |
| Overall Height (Decimal Inch) | 14-3/4 |
| Overall Depth (Decimal Inch) | 11-3/4 |
| Overall Depth (mm) | 298 |
| Standards Met | cULus; UL |
