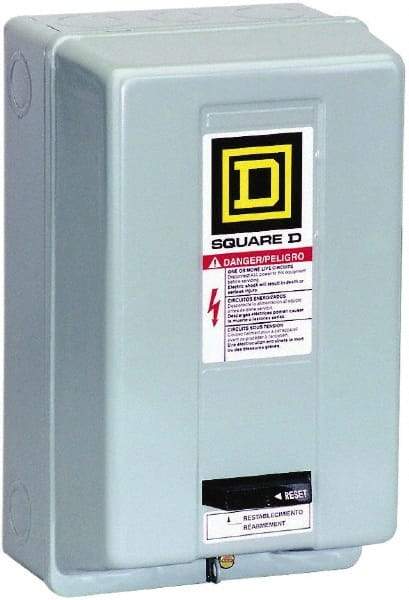

Square D - 208 Coil VAC at 60 Hz, 27 Amp, NEMA Size 1, Nonreversible Enclosed Enclosure NEMA Motor Starter - 3 Phase hp: 10 at 460 VAC, 10 at 575 VAC, 7-1/2 at 200 VAC, 7-1/2 at 230 VAC, 1 Enclosure Rating
Item #: 69524619
Brand: Square D
Model #: 8536SCG3V08H30
Exact Tooling IR#: 04
Features and Benefits
Enclosed housings are designed to ensure that the motor is never disconnected from power during starting. Ideal for frictional loads and prevention of electrical shocks and dust.
Non-reversing starters are designed with one phase line that connects to and runs voltage through the motor. The starter is used to turn a motor on and off.
NEMA 1 refers to enclosures constructed for indoor use. They provide a degree of protection from falling and other solid objects entering the enclosure.
| Product Specifications | |
|---|---|
| Amperage | 27 |
| NEMA Size | 1 |
| Coil Voltage | 208 VAC @ 60 Hz |
| Enclosure Type | Enclosed |
| Action | NonReversible |
| NEMA Enclosure Rating | 1 |
| Horsepower at 3 Phase | 10 @ 460 VAC; 10 @ 575 VAC; 7-1/2 @ 200 VAC; 7-1/2 @ 230 VAC |
| Standards Met | CSA; NEMA; RoHS Compliant; UL Listed |
