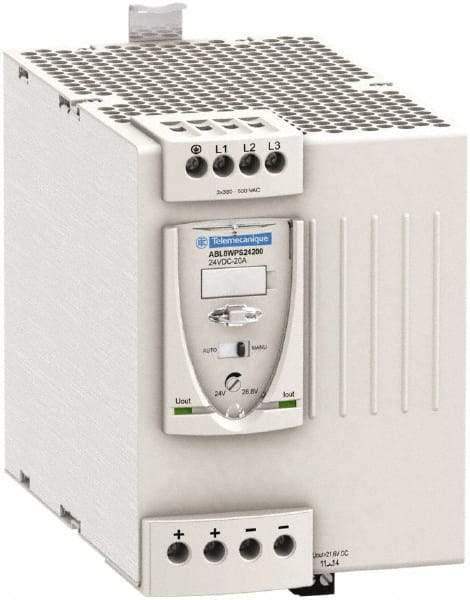

Schneider Electric - 480 Watt, 20 Amp, 380 to 500 VAC Input, 24 VDC Output, DIN Rail Power Supply - Screw Connection, 165mm Wide x 155mm Deep x 143mm High, 92-100% Efficiency, Green LED Output, Red LED Output
Item #: 69523629
Brand: Schneider Electric
Model #: ABL8WPS24200
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Mounting Type | DIN Rail |
| Output Wattage | 480 |
| Maximum Input Voltage | 380-500 VAC |
| Minimum Input Voltage | 380 VAC |
| Output Voltage | 24 VDC |
| Output Amperage | 20 |
| Number of Phases | 3 |
| Connection Type | Screw |
| Hold-up Time (ms) | 18 @ 400 V |
| Efficiency | 92-100 % |
| Ingress Protection Rating | IP10; IP20 |
| Status Indicator | Green LED (Output); Red LED (Output) |
| Overall Height (mm) | 143 |
| Overall Width (mm) | 165 |
| Overall Depth (mm) | 155 |
| Standards Met | cCSAus; C-Tick; UL |
