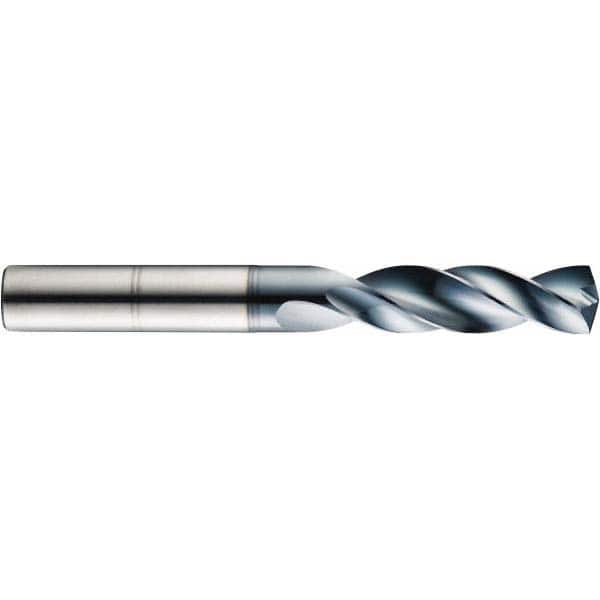

Screw Machine Length Drill Bit: 0.1142″ Dia, 145 °, Solid Carbide Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 135
Item #: 69514594
Brand: SGS
Model #: 64512
Product Specifications
| Drill Bit Size (mm) | 2.90 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 145 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.1181 |
| Drill Bit Size (Decimal Inch) | 0.1142 |
| Overall Length (mm) | 50.00 |
| Overall Length (Decimal Inch) | 1.9690 |
| Shank Diameter (mm) | 3.00 |
| Series | 135 |
| Number of Margins | 2 |
| Drill Length Type | Screw Machine |
| Point Type | Notched |
| Maximum Drilling Depth (mm) | 14.00 |
| Shank Length (Decimal Inch) | 1.2598 |
| Shank Length (mm) | 32.00 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | +0.002 to 0.012 mm; +0.00008 to +0.00047 in |
| Flute Length (Decimal Inch) | 0.7480 |
| Flute Length (mm) | 19.00 |
| Drill Bit Size Range (Decimal Inch) | 0.1000 to 0.1500 |
| Drill Bit Size Range (mm) | 0.00 to 3.50 |
