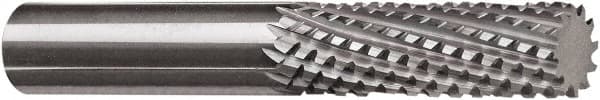

SGS - 3/8" Diam, 1-1/8" LOC, Plain End, Solid Carbide Diamond Pattern Router Bit - Left Hand Cut, 2-1/2" OAL, 3/8" Shank Diam, Use on Carbon Composite
Item #: 69514016
Brand: SGS
Model #: 73082
Exact Tooling IR#: 04
Features and Benefits
Plain (No End), also known as Safe End router bits, are used for edge routing and applications when no floor finish cuts are required.
Solid carbide is used for high performace applications. It is extremely heat resistant and used on cast iron, non-ferrous metals and other tough to machine materials.
Diamond (PCD) coating is one of the hardest coatings. It is commonly used on concrete, fiberglass, plastic, stone, aluminum alloy and extremely difficult-to-machine materials.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 3/8 |
| Cutting Diameter (Decimal Inch) | 0.3750 |
| End Type | Plain (No End) |
| Length of Cut (Decimal Inch) | 1.1250 |
| Length of Cut (Inch) | 1-1/8 |
| Shank Diameter (Inch) | 3/8 |
| Overall Length (Inch) | 2-1/2 |
| Material | Solid Carbide |
| Finish/Coating | Diamond |
| Material Application | Carbon Composite |
| Cutting Direction | Left Hand |
| Shank Length (Inch) | 1-3/8 |
| Shank Length (Decimal Inch) | 1.3750 |
| Cutting Diameter Tolerance (Decimal Inch) | +0.000/-0.005 |
