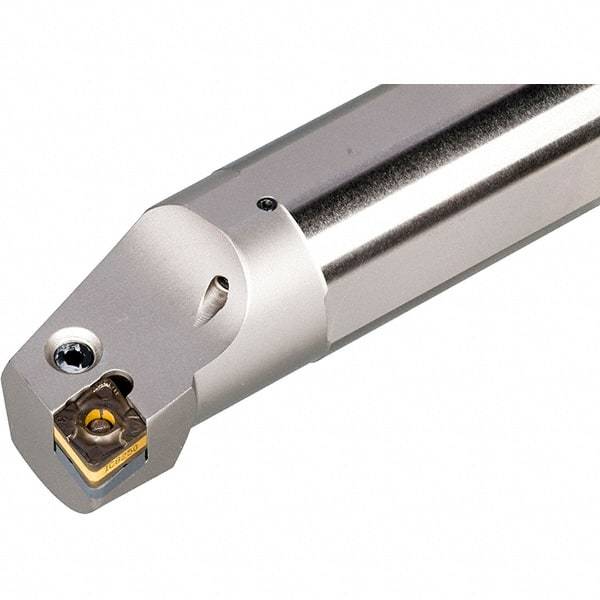

Iscar - 2.36" Min Bore Diam, 14" OAL, 1-1/2" Shank Diam, A-PCLN Indexable Boring Bar - 2" Max Bore Depth, CNMX 1207.. Insert, Clamp Holding Method
Item #: 69466340
Brand: Iscar
Model #: 3602963
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-PCLN |
| Series | Heliturn LD |
| Minimum Bore Diameter (Decimal Inch) | 2.3600 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (Decimal Inch) | 2.0000 |
| Overall Length (Decimal Inch) | 14.0000 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Insert Compatibility | CNMX 1207.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Rake | Negative |
| Center to Cutting Edge (Decimal Inch) | 0.8900 |
| Insert Inscribed Circle (mm) | 12.70 |
| Rake Angle | -12 |
| Complete Insert Compatibility | CNMX 120704-M4MW; CNMX 120708-HTW; CNMX 120708-M4MW; CNMX 120712-HTW; CNMX 120712-M4MW; CNMX 120716-HTW |
| Toolholder Material | Steel |
