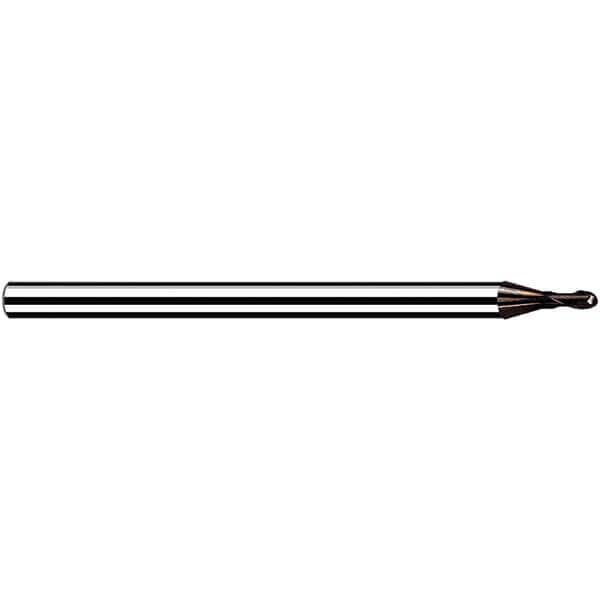

Ball End Mill: 0.0118″ Dia, 2 Flute, Solid Carbide 40 mm OAL, 3 mm Shank Dia, 30 ° Helix, Diamond Coated, Single End, Series Microcut-B3
Item #: 69447845
Brand: Fraisa
Model #: B5782030
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0118 |
| Mill Diameter (mm) | 0.30 |
| Length of Cut (mm) | 0.30 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Helix Angle | 30 |
| Variable Helix | No |
| Shank Diameter (mm) | 3.00 |
| Neck Diameter (Decimal Inch) | 0.2500 |
| Neck Diameter (mm) | 0.25 |
| Neck Length (Decimal Inch) | 0.9000 |
| Overall Length (mm) | 40.00 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | Microcut-B3 |
| Flute Type | Ball |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 2 |
| Coating/Finish | Diamond |
