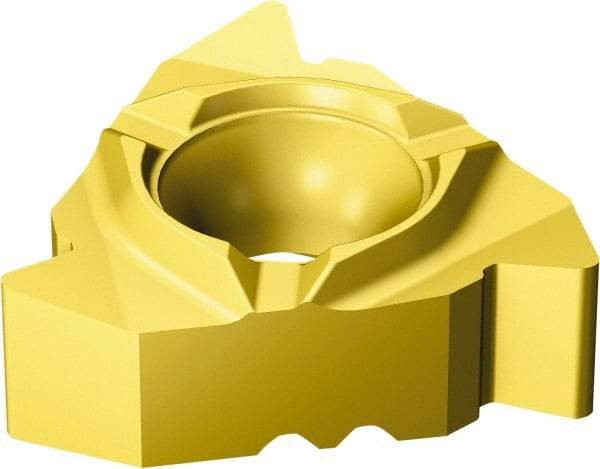

Sandvik Coromant - 26616 F Grade 1135, External Metric 60° Threading Insert - 10mm Ext Pitch, Right Hand Insert, Carbide
Item #: 69362234
Brand: Sandvik Coromant
Model #: 5857547
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 266 |
| Insert Size | 16 |
| Thread Type | External |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Thread Standard | Metric 60 Degrees |
| Manufacturer's Grade | 1135 |
| External Pitch/TPI | 1.00 mm |
| Material | Carbide |
| Coating Process | PVD |
| ISO Number | 266RG16MM01F100E1135 |
| Thickness (mm) | 3.97 |
| Thickness (Decimal Inch) | 0.1563 |
| Series | CoroThread 266 |
| Included Angle of Threading Tip | 60 |
| Chipbreaker | F |
| Manufacturers Catalog Number | 5857547 |
