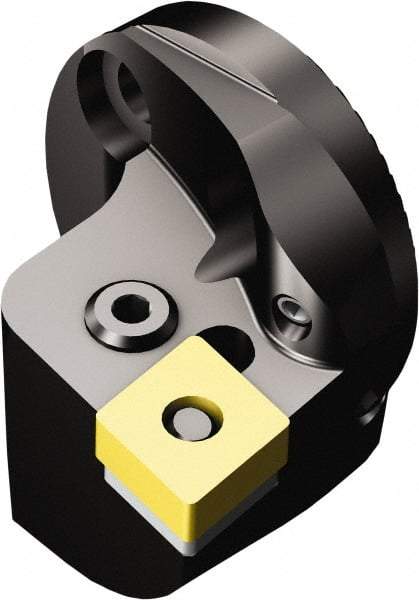

Sandvik Coromant - Left Hand Cut, Size 40, CNMG 120408 Insert Compatiblity, Internal Modular Turning & Profiling Cutting Unit Head - 27mm Ctr to Cutting Edge, 35mm Head Length, Through Coolant, Series T-Max P
Item #: 69347979
Brand: Sandvik Coromant
Model #: 5749952
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | 40 |
| Series Name | T-Max P |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 35.00 |
| Head Length/Projection (Decimal Inch) | 1.3780 |
| Insert Style | CNMG 120408 |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 27.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Insert Holding Method | Lever |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 35.00 |
| Maximum Hole Depth (Decimal Inch) | 1.3780 |
| Minimum Hole Diameter (mm) | 50.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.9685 |
| Axial Rake Angle | -6 |
| Radial Rake Angle | -10 |
| Neck Diameter (mm) | 40.00 |
| Neck Diameter (Decimal Inch) | 1.5748 |
| Complete Insert Compatibility | CNMG 120408 |
| Head Connection Size | 32 |
